Szczegóły Produktu:
|
| Numer części: | 484-0106134, 4840106134 | Typ: | Moduł i akcesoria ESCROW SDM2 |
|---|---|---|---|
| Używany do: | Dozownik NCR SDM2 | Gwarancja: | 90 dni |
| Stan: | nowy oryginał | Usługa dostosowywania: | Dostępne (części niestandardowe zgodnie z wymaganiami klienta) |
| Podkreślić: | NCR SDM2 ESCROW ATM replacement part,NCR ATM ESCROW module,484-0106134 ATM replacement part |
||

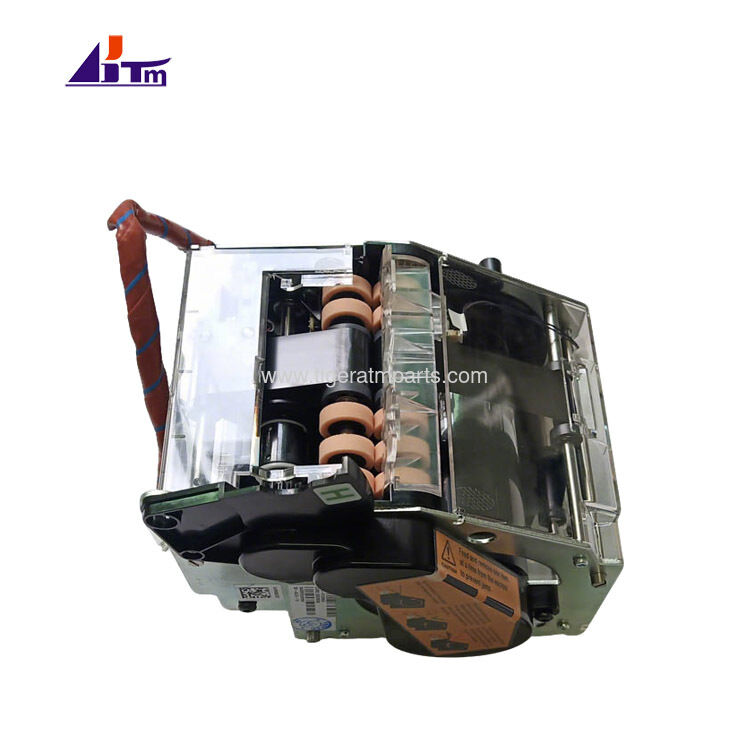

Looking for reliable NCR SDM2 ESCROW replacement parts? Tiger Spare Parts Co., Ltd proudly offers the high-quality NCR SDM2 ESCROW 484-0106134 (4840106134) ATM replacement parts, along with a full range of compatible components and accessories for NCR SDM2 series. Our products are engineered to meet or exceed original specifications, ensuring seamless integration and optimal performance of your ATM equipment.
| Product Name | NCR SDM2 ESCROW |
| Part Numbers | 484-0106134, 4840106134 |
| Compatible Brand | NCR |
| Compatible Series | NCR SDM2 |
| Product Type | ATM ESCROW Module & Accessories |
| Available Versions | New |
| Warranty Period | 90 Days |
| Quality Assurance | 100% Tested by Professional Engineers Before Shipment |
| Customization Service | Available (Custom Parts as Per Client Requirements) |
Beyond the NCR SDM2 ESCROW 484-0106134 core module, we supply a comprehensive selection of related components and accessories to support your maintenance and repair needs.
| Part Number | Alternate Part Number | Description |
|---|---|---|
| 484-0106789 | 4840106789 | BELT GUARD |
| 484-0106394 | 4840106394 | DRIVE JACK GEAR, 23 teeth |
| 484-0106395 | 4840106395 | GEAR - TAPE SHAFT, 20/21 teeth |
| 484-0104919 | 4840104919 | CLIP-ON FLANGE |
| 006-1068762 | 61068762 | BELT - TIMING 113T 6W |
| 484-0106396 | 4840106396 | PULLEY - ESCROW SLIP CLUTCH, 73 teeth |
| 006-1070737 | 0061070737 | bearing |
| 484-0106405 | 4840106405 | TRACK TOP |
| 484-0068268 | 4840068268 | SPRING - IDLER LIGHT |
| 484-0102437 | 4840102437 | COVER - ESCROW TOP |
| 484-0106407 | 4840106407 | GUIDE - ESCROW TOP |
| 484-0106416 | 4840106416 | COVER - ESCROW BOTTOM |
| 484-0106412 | 4840106412 | TS18 HARNESS TROUGH |
| 484-0105127 | 4840105127 | Board Assembly - Single Sensor |
| 484-0106456 | 4840106456 | TIRE |
| 484-0102440 | 4840102440 | COVER - REAR ESCROW |
| 484-0106788 | 4840106788 | HOLDER - TAPE SENSOR |
| 484-0106466 | 4840106466 | HARNESS - TRACK REAR |
| 484-0102703 | 4840102703 | ESCROW FIXED TAPE GUIDE |
| 484-0101710 | 4840101710 | SPOOL - ESCROW TAPE IDLER |
| 484-0105268 | 4840105268 | roller shaft assembly, grey |
| 006-1068799 | 0061068799 | SLOTTED OPTICAL SWITCH, SIDE MOUNT |
| 484-0102439 | 4840102439 | BRACKET - DRUM FULL SENSOR |
| 484-0103183 | 4840103183 | Harness - Limit Switch |
| 484-0106382 | 4840106382 | cable harness |
| 484-0106403 | 4840106403 | TRACK BOTTOM |
| 484-0105130 | 4840105130 | Board Assembly - Single LED |
| 484-0106502 | 4840106502 | ASSEMBLY - ESCROW SPOOL W/ TAPE, LEADER IN, black |
| 484-0106501 | 4840106501 | ASSEMBLY - ESCROW SPOOL W/ TAPE, LEADER OUT, white |
| 006-1068730 | 0061068730 | MAGNETIC CLUTCH,445-0761208484-0106869-30 |
| 484-0102446 | 4840102446 | GEAR - TAPE SPOOL SHAFT, 16 teeth |
| 484-0101708 | 4840101708 | GEAR - ESCROW TAPE DRIVE SHAF, 28 teeth |
| 484-0106404 | 4840106404 | PADDLE |
| 484-0106406 | 4840106406 | SPOOL - MAIN |
| 484-0106465 | 4840106465 | SPRING - ESCROW PADDLE TORSION |
| 484-0106413 | 4840106413 | BEARING HOLDER - ESCROW DRUM,98mm |
| 484-0106410 | 4840106410 | TAPE SPOOL SHAFT,135.5mm |
| 484-0102445 | 4840102445 | CLIP - ESCROW TAPE |
| 484-0106414 | 4840106414 | DRUM - ESCROW DOCUMENT |
| 484-0102432 | 4840102432 | MOUNT - ESCROW MOTOR |
| 484-0101723 | 4840101723 | PULLEY - ESCROW TAPE DRIVE, 26 teeh |
| 484-0067146 | 4840067146 | ASSEMBLY - INFEED MOTOR_GEAR |
| 006-1068990 | 0061068990 | MOTOR-DC 24V 35.8 OD |
| 484-0066683 | 4840066683 | GEAR - 15T 0_5 MODULE |
| 484-0106103 | 4840106103 | Harness - Large DC Motor |
| 484-0101717 | 4840101717 | GEAR PULLEY, 19-72 teeth |
| 006-1068729 | 0061068729 | bearing |
| 484-0102922 | 4840102922 | ESCROW MOUNTING POST |
| 484-0091592 | 4840091592 | UPPORT BUSHING - DIVERTOR SHAFT |
| 484-0099297 | 4840099297 | LABEL - MODULE ID "H" |
| 484-0101711 | 4840101711 | SHAFT - ESCROW TAPE IDLER SPOOL |
| 445-0774920 | 4450774920 | PLATE B - ESCROW SIDE |
| 484-0101713 | 4840101713 | GEAR - ESCROW RING, 60 teeth |
| 484-0102447 | 4840102447 | PLATE A - ESCROW SIDE |
| 484-0102450 | 4840102450 | SHAFT - TAPE SPOOL |
| 484-0102451 | 4840102451 | SHAFT - TAPE SPOOL DRIVE |
| 484-0106409 | 4840106409 | ESCROW DRIVE - JACK SHAFT, 27.25mm |
| 484-0106401 | 4840106401 | TS18 LOWER MOUNT |
| 484-0106798 | 4840106798 | ASSEMBLY - TAPE SPOOL SHAFT |
| 484-0106801 | 4840106801 | ASSEMBLY - TAPE SPOOL SHAFT LEADER IN |
| 484-0106807 | 4840106807 | ASSEMBLY - ESCROW DOCUMENT GUIDE |
| 445-0774973 | 4450774973 | TAPE SPOOL SHAFT LEADER OUT |
| 445-0774974 | 4450774974 | TAPE SPOOL SHAFT LEADER IN |
As a trusted supplier of cash handling equipment and spare parts, Tiger Spare Parts Co., Ltd specializes in providing one-stop solutions for financial institutions and maintenance service providers worldwide.
We cooperate with leading global brands to ensure authentic and compatible parts supply, including: NCR, Diebold Nixdorf, Wincor, Glory, NMD, GRG, Fujitsu, Hyosung, Hitachi, Genmega, OKI, Datacard, MEI, VeriFone, etc.
For more information about NCR SDM2 ESCROW 484-0106134 / 4840106134 replacement parts, or to inquire about our full range of cash handling equipment and spare parts, please contact Tiger Spare Parts Co., Ltd today. Our professional team is ready to assist you with your requirements.
